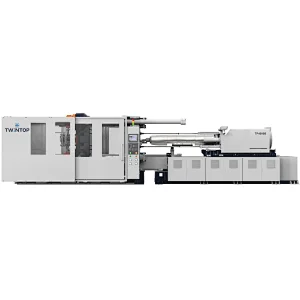

DESCROPTION | UNIT | MODEL: TP-4000B | ||
A | B | C | ||
INJECTION UNIT | ||||
Screw Diameter | mm | 200 | 220 | 240 |
Injection Pressure | kg/cm2 | 2098 | 1734 | 1460 |
Shot Volume (Theoretical) | cm3 | 37070 | 44855 | 53381 |
Shot Weight (PS) | g | 33734 | 40818 | 48576 |
oz | 1190 | 1439 | 1713 | |
Injection Rate | cm3/s | 2026 | 2452 | 2918 |
Plasticizing Capacity | kg/hr | 350 | 430 | 560 |
Injection Speed | mm/s | 64 | ||
Screw Speed | rpm | 50 | ||
CLAMPING UNIT | ||||
Clamp Force | kn | 40000 | ||
Space Between Tie Bars (W*H) | mm | 2420X2020 | ||
Mold Platen Size (W*H) | mm | 3350X2950 | ||
Max. Mold Height | mm | 1000-2100 | ||
Min. Mold Height | mm | 4500 | ||
Max. Daylight | mm | 315 | ||
Mold Locating Ring Diameter | mm | 550 | ||
Ejector Stroke | mm | 68 | ||
OTHERS | ||||
Number of Temperature Control Zone | zone | 8 | ||
Motor Power | kw | 48X6 | ||
Heater Power | kw | 240 | ||
System Pressure | kg/cm2 | 170 | ||
Oil Tank Capacity | l | 4000 | ||
Machine Dimension (LxWxH) | m*m*m | 21X5.6X5.6 | ||
Machine Weight | Ton | 255 | ||
