DESCROPTION

UNIT

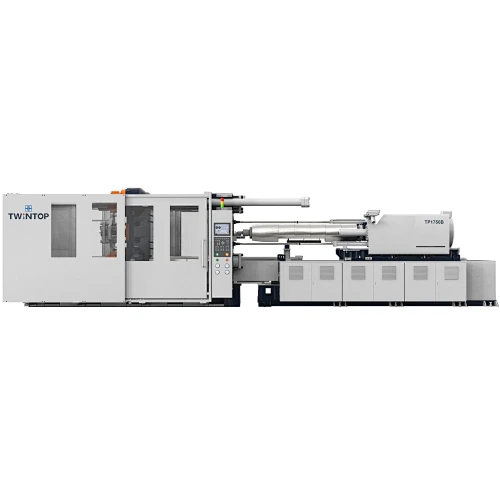

MODEL: TP-4000B

A

B

C

INJECTION UNIT

Screw Diameter

mm

200

220

240

Injection Pressure

kg/cm²

2098

1734

1460

Shot Volume (Theoretical)

cm³

37070

44855

53381

Shot Weight (PS)

g

33734

40818

48576

oz

1190

1439

1713

Injection Rate

cm³/s

2026

2452

2918

Plasticizing Capacity

kg/hr

350

430

560

Injection Speed

mm/s

64

Screw Speed

rpm

50

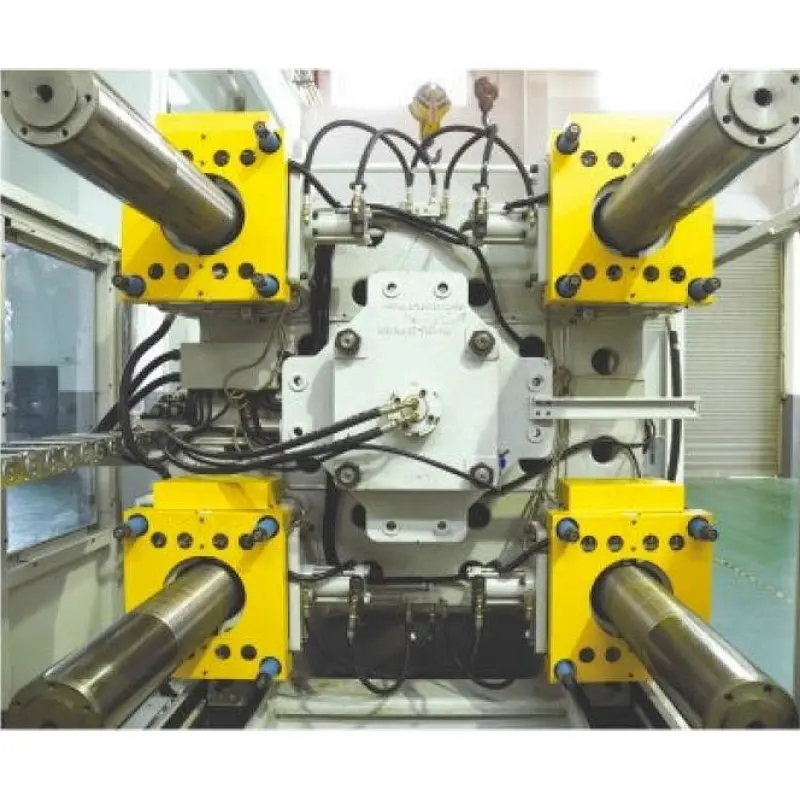

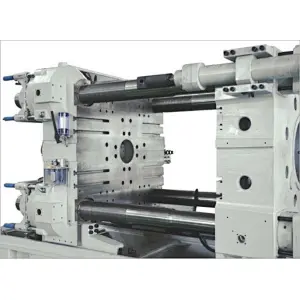

CLAMPING UNIT

Clamp Force

kn

40000

Space Between Tie Bars (W*H)

mm

2420X2020

Mold Platen Size (W*H)

mm

3350X2950

Max. Mold Height

mm

1000-2100

Min. Mold Height

mm

4500

Max. Daylight

mm

315

Mold Locating Ring Diameter

mm

550

Ejector Stroke

mm

68

OTHERS

Number of Temperature Control Zone

zone

8

Motor Power

kw

48X6

Heater Power

kw

240

System Pressure

kg/cm²

170

Oil Tank Capacity

l

4000

Machine Dimension (LxWxH)

m*m*m

21X5.6X5.6

Machine Weight

Ton

255
