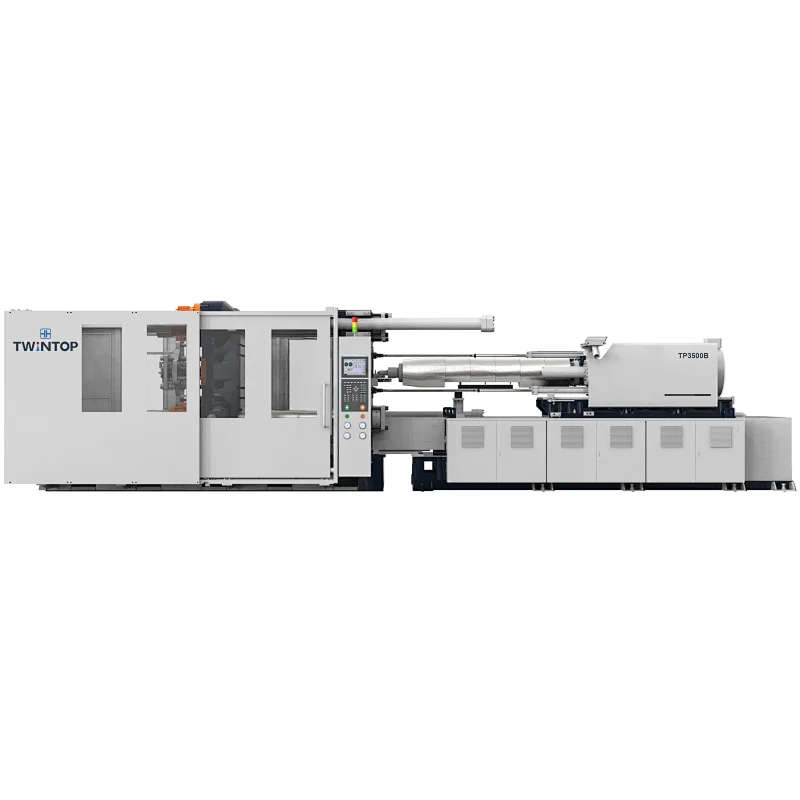

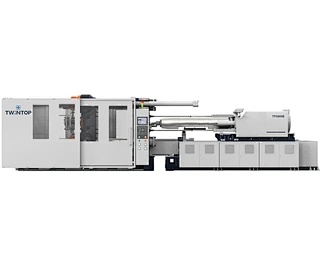

two platen machine TP-3500B
two platen machine TP-3500B
two platen machine TP-3500B
two platen machine TP-3500B
two platen machine TP-3500B
two platen machine TP-3500B
two platen machine TP-3500B

two platen machine TP-3500B

Model NO.: TP-3500B(3500T)

DESCROPTION

UNIT

MODEL: TP-3500B

A

B

C

INJECTION UNIT

Screw Diameter

mm

160

170

180

Injection Pressure

kg/cm2

2279

2018

1800

Shot Volume (Theoretical)

cm3

21714

24513

27482

Shot Weight (PS)

g

19543

22062

24734

oz

690

779

875

Injection Rate

cm3/s

1777

2006

2250

Plasticizing Capacity

kg/hr

999

1200

1450

Injection Speed

mm/s

88

Screw Speed

rpm

80

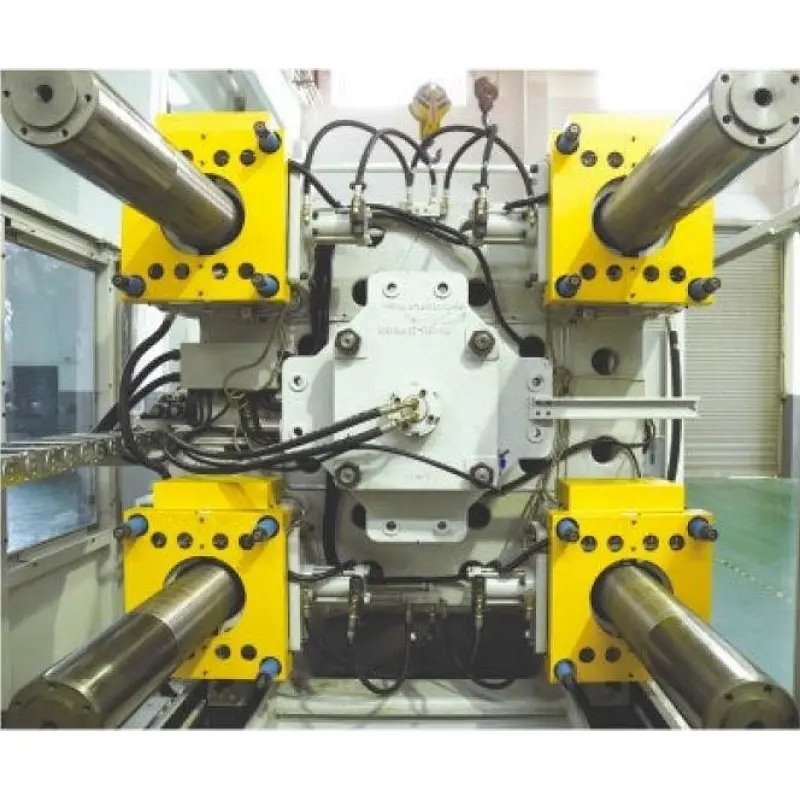

CLAMPING UNIT

Clamp Force

kn

35000

Space Between Tie Bars (W*H)

mm

2200X1800

Mold Platen Size (W*H)

mm

2300X2800

Max. Mold Height

mm

2100

Min. Mold Height

mm

1000

Max. Daylight

mm

3800

Mold Locating Ring Diameter

mm

315

Ejector Stroke

mm

400

Ejector Force

kn

400

OTHERS

Number of Temperature Control Zone

zone

8

Motor Power

kw

57X5

Heater Power

kw

105

System Pressure

kg/cm2

170

Oil Tank Capacity

l

3000

Machine Dimension (LxWxH)

m*m*m

17X4.8X4.0

Machine Weight

Ton

180
