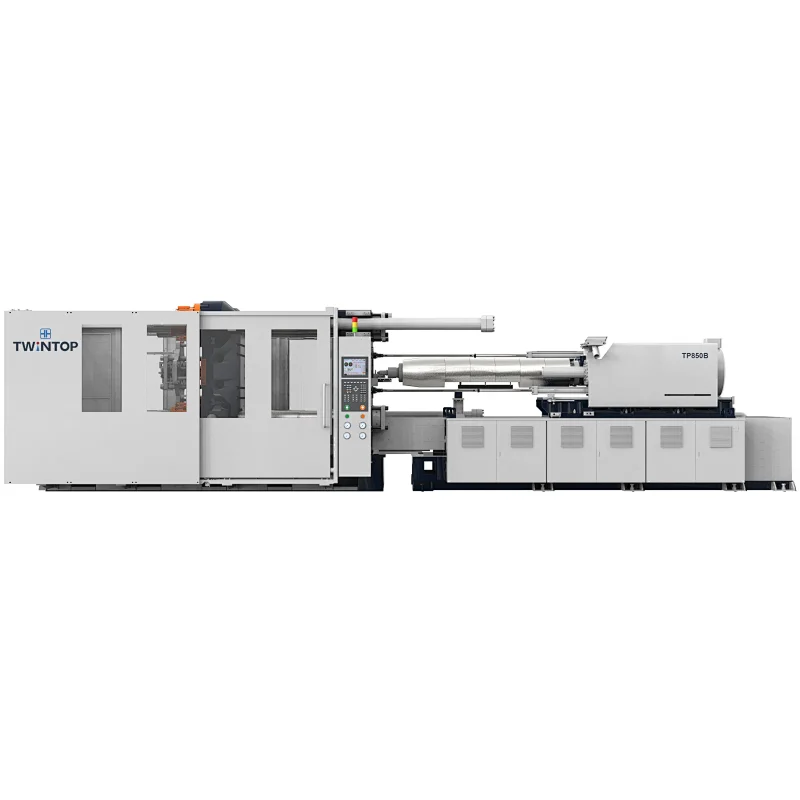

Two platen machine TP-850B
TP-850B (850T)
Delivery
FOB
Quantity:
Two platen injection machine，injection machine，injection molding machine，injection moulding machine，servo injection machine，machine platen，platen machine，platen1
hot platen machine，hot platen press machine
DESCROPTION | UNIT | MODEL: TP-850B | ||
A | B | C | ||
INJECTION UNIT | ||||
Screw Diameter | mm | 90 | 100 | 110 |
Injection Pressure | kg/cm2 | 2283 | 1849 | 1528 |
Shot Volume (Theoretical) | cm3 | 3180 | 3927 | 4751 |
Shot Weight (PS) | g | 2863 | 3534 | 4376 |
oz | 101 | 125 | 151 | |
Injection Rate | cm3/s | 643 | 793 | 960 |
Plasticizing Capacity | kg/hr | 300 | 390 | 380 |
Injection Speed | mm/s | 101 | ||
Screw Speed | rpm | 115 | ||
CLAMPING UNIT | ||||
Clamp Force | kn | 8500 | ||
Space Between Tie Bars (W*H) | mm | 1100X960 | ||
Mold Platen Size (W*H) | mm | 1550X1500 | ||
Max. Mold Height | mm | 1100 | ||
Min. Mold Height | mm | 500 | ||
Max. Daylight | mm | 2300 | ||
Mold Locating Ring Diameter | mm | 150 | ||
Ejector Stroke | mm | 300 | ||
Ejector Force | kn | 170 | ||
OTHERS | ||||
Number of Temperature Control Zone | zone | 7 | ||
Motor Power | kw | 41X3+57 X1 | ||
Heater Power | kw | 45 | ||
System Pressure | kg/cm2 | 170 | ||
Oil Tank Capacity | l | 1000 | ||
Machine Dimension (LxWxH) | m*m*m | 8.6X2.7X2.5 | ||
Machine Weight | Ton | 32 | ||
