DESCROPTION

UNIT

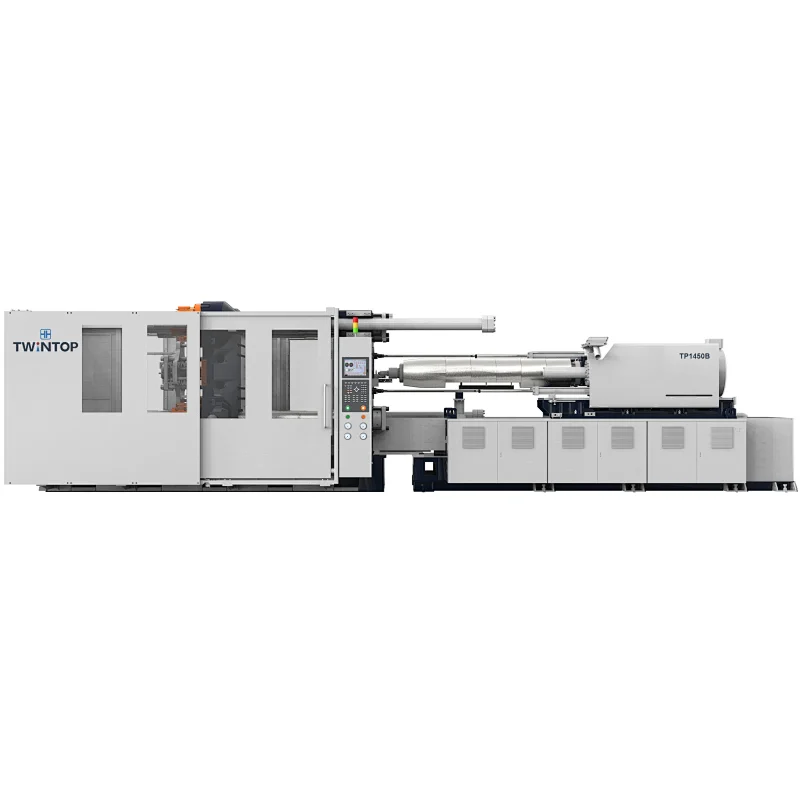

MODEL: TP-1450B

A

B

C

INJECTION UNIT

Screw Diameter

mm

110

120

130

Injection Pressure

kg/cm²

2149

1806

1539

Shot Volume (Theoretical)

cm³

5702

6786

7963

Shot Weight (PS)

g

5132

6107

7167

oz

181

216

254

Injection Rate

cm³/s

985

1173

1377

Plasticizing Capacity

kg/hr

356

401

518

Injection Speed

mm/s

104

Screw Speed

rpm

100

CLAMPING UNIT

Clamp Force

kn

14500

Space Between Tie Bars (W*H)

mm

1410X1210

Mold Platen Size (W*H)

mm

2000X1800

Max. Mold Height

mm

1400

Min. Mold Height

mm

650

Max. Daylight

mm

3000

Mold Locating Ring Diameter

mm

150

Ejector Stroke

mm

350

Ejector Force

kn

200

OTHERS

Number of Temperature Control Zone

zone

7

Motor Power

kw

41x2+57X1

Heater Power

kw

60

System Pressure

kg/cm²

170

Oil Tank Capacity

l

2000

Machine Dimension (LxWxH)

m*m*m

11X3.3X2.85

Machine Weight

Ton

60
