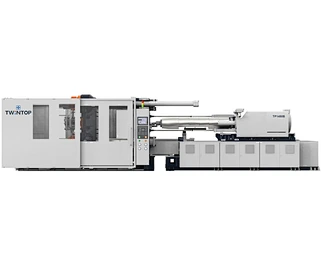

Deux Platen MachineTP-1450B
TP-1450B(1450T)
Livraison
FOB
Quantité:
DESCROPTION | UNIT | MODEL: TP-1450B | ||
A | B | C | ||
INJECTION UNIT | ||||
Screw Diameter | mm | 110 | 120 | 130 |
Injection Pressure | kg/cm2 | 2149 | 1806 | 1539 |
Shot Volume (Theoretical) | cm3 | 5702 | 6786 | 7963 |
Shot Weight (PS) | g | 5132 | 6107 | 7167 |
oz | 181 | 216 | 254 | |
Injection Rate | cm3/s | 985 | 1173 | 1377 |
Plasticizing Capacity | kg/hr | 356 | 401 | 518 |
Injection Speed | mm/s | 104 | ||
Screw Speed | rpm | 100 | ||
CLAMPING UNIT | ||||
Clamp Force | kn | 14500 | ||
Space Between Tie Bars (W*H) | mm | 1410X1210 | ||
Mold Platen Size (W*H) | mm | 2000X1800 | ||
Max. Mold Height | mm | 1400 | ||
Min. Mold Height | mm | 650 | ||
Max. Daylight | mm | 3000 | ||
Mold Locating Ring Diameter | mm | 150 | ||
Ejector Stroke | mm | 350 | ||
Ejector Force | kn | 200 | ||
OTHERS | ||||
Number of Temperature Control Zone | zone | 7 | ||
Motor Power | kw | 41x2+57X1 | ||
Heater Power | kw | 60 | ||
System Pressure | kg/cm2 | 170 | ||
Oil Tank Capacity | l | 2000 | ||
Machine Dimension (LxWxH) | m*m*m | 11X3.3X2.85 | ||
Machine Weight | Ton | 60 | ||
