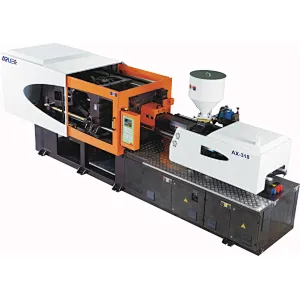

PVC special Injection Moulding Machine
Model NO.: AX/UPVC318 (318T)
| DESCROPTION | UNIT | MODEL: AX/UPVC-318 |
| A | B |
| INJECTION UNIT |
| Screw Diameter | mm | 55 | 60 |
| Screw L:D ratio | L/D | 23 | 21 |
| Shot Size (TheoreticalAX) | cm3 | 700 | 834 |
| Injection Weight (PS) | g | 637 | 759 |
| Injection Rate | g/s | 220 | 265 |
| Injection Pressure | MPa | 196 | 164 |
| Max. Screw Speed | rpm | 0-168 |
| CLAMPING UNIT |
| Clamp Tonnage | kn | 3180 |
| Tonnage Stroke | mm | 590 |
| Space Between Tie Bars (W*H) | mm | 630X630 |
| Max. Mold Height | mm | 630 |
| Min. Mold Height | mm | 230 |
| Ejector Stroke | mm | 150 |
| Ejector Tonnage | kn | 70 |
| OTHERS |
| Max. pump Pressure | MPa | 16 |
| Pump Motor Power | kw | 31 |
| Heater Power | kw | 16.5 |
| Machine Dimension (LxWxH) | m*m*m | 6.78X1.78X2.28 |
| Machine Weight | Ton | 9.6 |
| Oil Tank Capacity | L | 440 |
