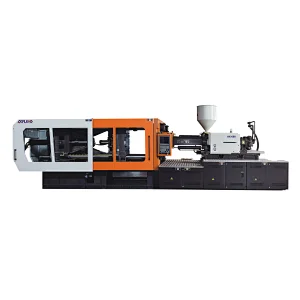

PVC special Injection Moulding Machine
AX/UPVC658 (658T)
Quantity:
| DESCROPTION | UNIT | MODEL: AX/UPVC-658 | ||
| A | B | C | ||
| INJECTION UNIT | ||||
| Screw Diameter | mm | 85 | 90 | 95 |
| Screw L:D ratio | L/D | 22 | 21 | 20 |
| Shot Size (TheoreticalAX) | cm3 | 2553 | 2862 | 3189 |
| Injection Weight (PS) | g | 2323 | 2604 | 2902 |
| Injection Rate | g/s | 470 | 526 | 587 |
| Injection Pressure | MPa | 184 | 165 | 149 |
| Max. Screw Speed | rpm | 0-140 | ||
| CLAMPING UNIT | ||||
| Clamp Tonnage | kn | 6580 | ||
| Tonnage Stroke | mm | 900 | ||
| Space Between Tie Bars (W*H) | mm | 880X880 | ||
| Max. Mold Height | mm | 900 | ||
| Min. Mold Height | mm | 350 | ||
| Ejector Stroke | mm | 250 | ||
| Ejector Tonnage | kn | 150 | ||
| OTHERS | ||||
| Max. pump Pressure | MPa | 16 | ||
| Pump Motor Power | kw | 37+37 | ||
| Heater Power | kw | 42 | ||
| Machine Dimension (LxWxH) | m*m*m | 10.2X2.2X2.71 | ||
| Machine Weight | Ton | 26 | ||
| Oil Tank Capacity | L | 1000 | ||
