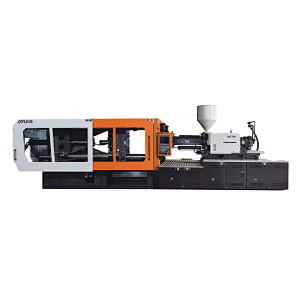

PVC special Injection Moulding Machine
AX/UPVC788 (788T)
Quantity:
| DESCROPTION | UNIT | MODEL: AX/UPVC-788 | ||
| A | B | C | ||
| INJECTION UNIT | ||||
| Screw Diameter | mm | 90 | 95 | 105 |
| Screw L:D ratio | L/D | 23.2 | 22 | 19.8 |
| Shot Size (TheoreticalAX) | cm3 | 2990 | 3331 | 4070 |
| Injection Weight (PS) | g | 2721 | 3032 | 3703 |
| Injection Rate | g/s | 574 | 640 | 781 |
| Injection Pressure | MPa | 195 | 175 | 143 |
| Max. Screw Speed | rpm | 0-130 | ||
| CLAMPING UNIT | ||||
| Clamp Tonnage | kn | 7880 | ||
| Tonnage Stroke | mm | 980 | ||
| Space Between Tie Bars (W*H) | mm | 980X980 | ||
| Max. Mold Height | mm | 960 | ||
| Min. Mold Height | mm | 400 | ||
| Ejector Stroke | mm | 280 | ||
| Ejector Tonnage | kn | 210 | ||
| OTHERS | ||||
| Max. pump Pressure | MPa | 16 | ||
| Pump Motor Power | kw | 44+37 | ||
| Heater Power | kw | 46 | ||
| Machine Dimension (LxWxH) | m*m*m | 11.43X2.4X3.14 | ||
| Machine Weight | Ton | 35 | ||
| Oil Tank Capacity | L | 1150 | ||
