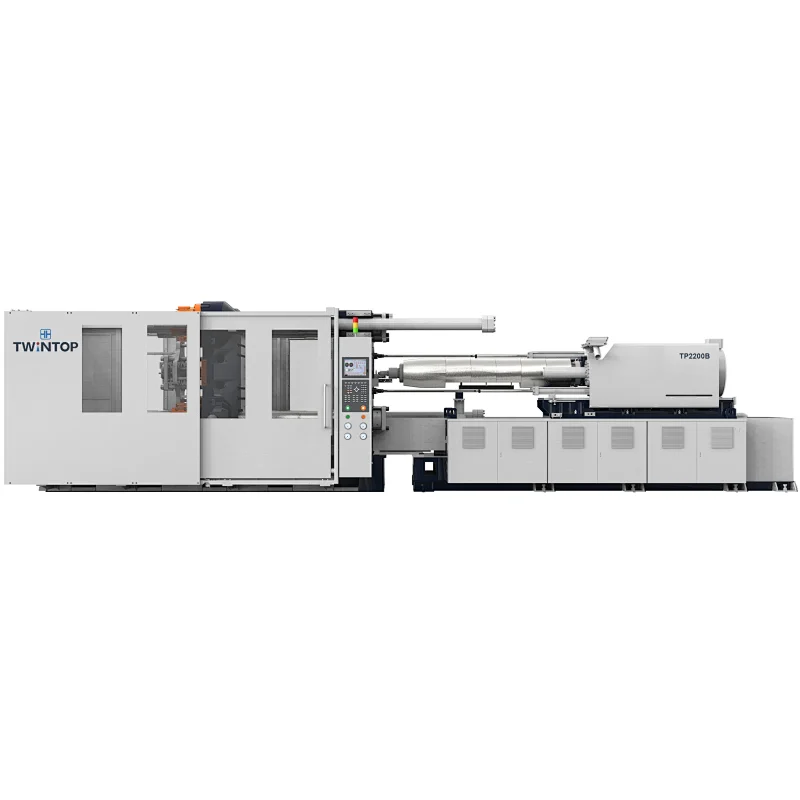

two platen machine TP-2200B
two platen machine TP-2200B

two platen machine TP-2200B

Model NO.: TP-2200B(2200T)

DESCROPTION

UNIT

MODEL: TP-2200B

A

B

C

INJECTION UNIT

Screw Diameter

mm

140

150

160

Injection Pressure

kg/cm2

1942

1692

1487

Shot Volume (Theoretical)

cm3

12315

14137

16084

Shot Weight (PS)

g

11083

12723

14476

oz

391

449

511

Injection Rate

cm3/s

1442

1655

1883

Plasticizing Capacity

kg/hr

666

815

999

Injection Speed

mm/s

94

Screw Speed

rpm

80

CLAMPING UNIT

Clamp Force

kn

22000

Space Between Tie Bars (W*H)

mm

1800X1500

Mold Platen Size (W*H)

mm

2600X2300

Max. Mold Height

mm

1700

Min. Mold Height

mm

900

Max. Daylight

mm

3400

Mold Locating Ring Diameter

mm

150

Ejector Stroke

mm

400

Ejector Force

kn

400

OTHERS

Number of Temperature Control Zone

zone

7

Motor Power

kw

23X1+57x3

Heater Power

kw

90

System Pressure

kg/cm2

170

Oil Tank Capacity

l

2600

Machine Dimension (LxWxH)

m*m*m

13.55X4.08X3.4

Machine Weight

Ton

105
