DESCROPTION

UNIT

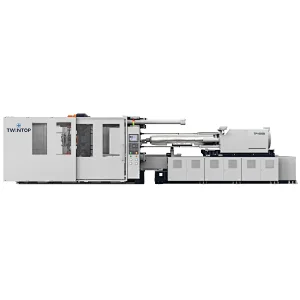

MODEL: TP-1050B

A

B

C

INJECTION UNIT

Screw Diameter

mm

100

110

120

Injection Pressure

kg/cm²

2290

1893

1590

Shot Volume (Theoretical)

cm³

4712

5701

6785

Shot Weight (PS)

g

4241

5131

6107

oz

149

181

215

Injection Rate

cm³/s

796

963

1147

Plasticizing Capacity

kg/hr

300

356

401

Injection Speed

mm/s

101

Screw Speed

rpm

115

CLAMPING UNIT

Clamp Force

kn

10500

Space Between Tie Bars (W*H)

mm

1210X1060

Mold Platen Size (W*H)

mm

1760X1760

Max. Mold Height

mm

1300

Min. Mold Height

mm

600

Max. Daylight

mm

2800

Mold Locating Ring Diameter

mm

150

Ejector Stroke

mm

300

Ejector Force

kn

200

OTHERS

Number of Temperature Control Zone

zone

7

Motor Power

kw

41X3

Heater Power

kw

45

System Pressure

kg/cm²

170

Oil Tank Capacity

L

1300

Machine Dimension (LxWxH)

m*m*m

10X3.0X2.62

Machine Weight

Ton

40
