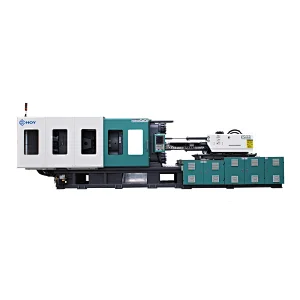

KS668 Nylon Cable Tie Injection Molding Machines
KS668
Delivery
FOB
Quantity:
DESCROPTION | UNIT | MODEL: KS668 |
INJECTION UNIT | ||
Screw Diameter | mm | 75 |
Injection Pressure | kg/cm2 | 1488 |
Shot Volume (Theoretical) | cm3 | 1116 |
Shot Weight (PS) | g | 1048 |
oz | 37.0 | |
Injection Rate | cm3/s | 1255 |
Plasticizing Capacity | kg/hr | 396 |
Injection Stroke | mm | 290 |
Screw Speed | rpm | 289 |
CLAMPING UNIT | ||
Clamp Force | kn | 668 |
Distance Between Tie Bars (W*H) | mm | 785X785 |
Mold Platen Size (W*H) | mm | 1290X1500 |
Min. Mold Capacity | mm | 500X500 |
Mold Height | mm | 265-720 |
Max. Daylight | mm | 1330 |
Clamp Stroke | mm | 610 |
Ejector Stroke | mm | 190 |
Ejector Force | kn | 111 |
OTHERS | ||
| Ejector quantity | unit | 12+1 |
| Heater zone | unit | 5+1 |
Heater Power | kw | 31 |
| Total Power | kw | 133 |
Machine Dimension (LxWxH) | m*m*m | 8.3X2.3X2.4 |
Machine Weight | Ton | 34 |
