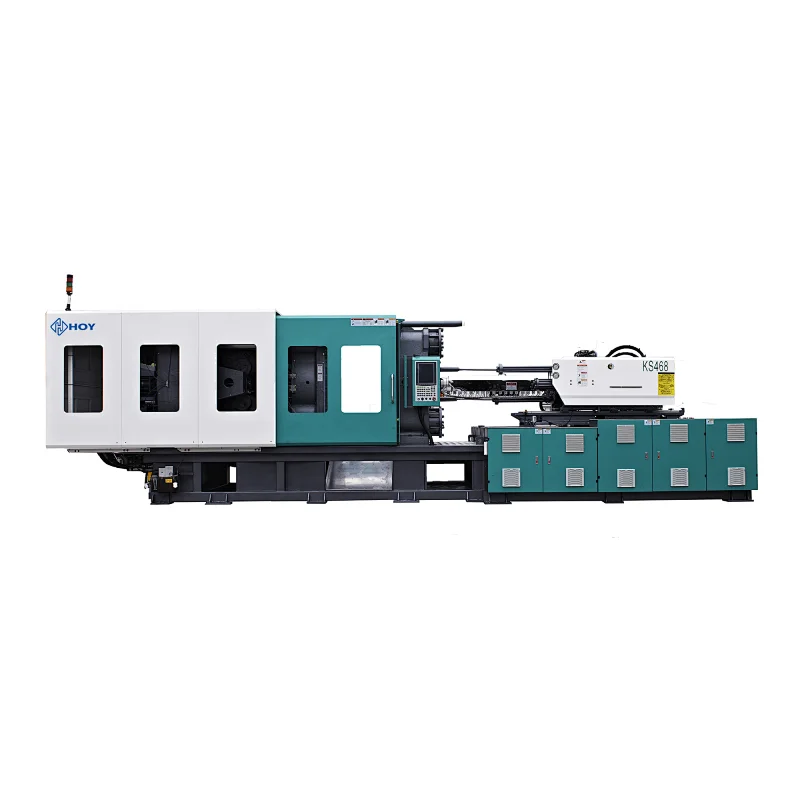

KS468 Nylon Cable Tie Injection Molding Machines

DESCROPTION

UNIT

MODEL: KS468

INJECTION UNIT

Screw Diameter

mm

70

Injection Pressure

kg/cm²

1371

Shot Volume (Theoretical)

cm³

1116

Shot Weight (PS)

g

1048

oz

37.0

Injection Rate

cm³/s

617

Plasticizing Capacity

kg/hr

389

Injection Stroke

mm

290

Screw Speed

rpm

291

CLAMPING UNIT

Clamp Force

kn

468

Distance Between Tie Bars (W*H)

mm

685X685

Mold Platen Size (W*H)

mm

1030X1300

Min. Mold Capacity

mm

500X500

Mold Height

mm

245-720

Max. Daylight

mm

1170

Clamp Stroke

mm

450

Ejector Stroke

mm

120

Ejector Force

kn

111

OTHERS

unit

4+1

unit

5+1

Heater Power

kw

28

kw

72

Machine Dimension (LxWxH)

m*m*m

6.7X2X2.2

Machine Weight

Ton

17
