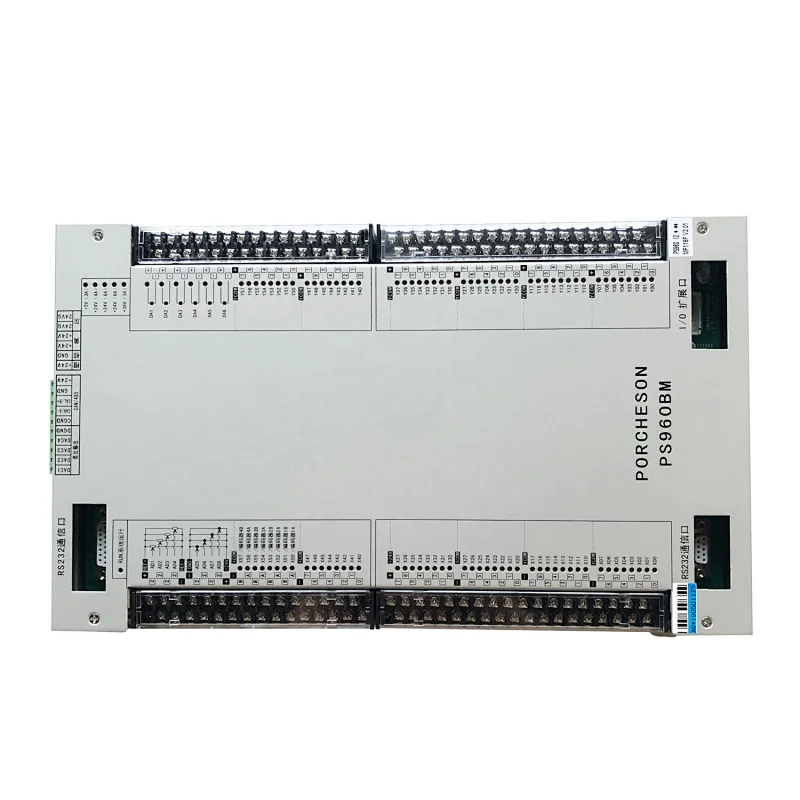

PORCHESON PS960BM controller
| Injection Molding Machine Control System | ||||
| MS300/MS210A | PS360AM/MS210A | MS500/MS250 | PS660AM/MS210A | PS860AM/MS210A |
| MS500/MS210A | PS660BM /MK110 | ML600B/MK110 | MC300AM/MS210A | PS330BM/MK108 |
| PS860BM/MK661 | PS860AM/MK310 | PS860AM/MF118 | PS960AM/MS260 | MS700/MS260 |
Features:
·Adopt ARM processor, stable performance
·Function integration, optional
·Mature solutions, mature products, enduring
·Simple operation and easy maintenance
·Multi-layer protection, safe and reliable,
· Convenient and quick program changes, quick response to on-site needs
·Support customer's secondary development and protect customer's core technology
| Project | Specifications |
| Brand | Porcheson |
| Host model | PS960BM |
| Programming software | PsMagic V3.28 (support user’s secondary development, language: ladder diagram +C language) |
| Performance | CPU: ARM; 32nd CPU; program scanning cycle: 1.2ms |
| Analog input | Position transducer: 0～4.1V, 4 channels single transducer precision: 12bit, Sampling period: 100KSPS |
| Pressure detection:4 way 0～20mA | |
| Temperature control | 12segments, self-learning PID control, display precision: 0.1℃, sensor type: K (default),J. |
| Voltage output | 4 channels 16bit 0→10v with the fastest rising speed being 300ms |
| Current input | 4 channels closed loop（0-1A），2 channels PWM（0-1A） |
| Input I | 48 channels wet contact (NPN)，3channels differential scrambler （2channels standard: AB）,Short circuit protection |
| Output O | 48 channela high power transistor with direct fuel valve, drive capability 4.5A (full load test) |
| 7channels Wet Contact (relay) output：motor, lubrication, etc. | |
| Communication interface | RS232、RS485、CAN |
| Working voltage | Service voltage: DC18V- 36V |
| Environment | Working temperature: -10℃～50℃; storage temperature: -25℃～55℃; relative humidity: 15%～85% |
| Recommended type | Two-color and three-color injection molding machine |
| Remarks | Parameters of the product may be changed due to technical update or improvement without prior notice. All ordered products and parameters are subject to the physical product. |
