Injection Molding Machine Control System
MS300/MS210A	PS360AM/MS210A	MS500/MS250	PS660AM/MS210A	PS860AM/MS210A
MS500/MS210A	PS660BM /MK110	ML600B/MK110	MC300AM/MS210A	PS330BM/MK108
PS860BM/MK661	PS860AM/MK310	PS860AM/MF118	PS960AM/MS260	MS700/MS260

Features:

·ARM processor, stable system, low system failure rate

·Classic mature design and production plan，Enduring

·Easy operation and maintenance

·Multilayer protection, safe and reliable

·Quick response to customer site requirements

·User software redevelopment supported to protect clients' core technology

Project	Specifications
Brand	Porcheson

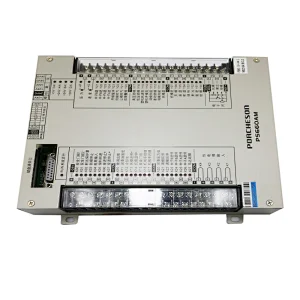

Host model	PS660AM
Programming software	PsMagic V3.28 (support user’s secondary development, language: ladder diagram +C language)
Performance	CPU: ARM; 32nd CPU; program scanning cycle: 1.2ms
Analog input	Position transducer: 0～2.5V, 3 channels single transducer, precision: 12bit, Sampling period: 100KSPS
Analog input	Pressure detection: 0～10V
Temperature control	4segments, self-learning PID control, display precision: 0.1℃, sensor type: K (default),J.
Voltage output	2 channels 16bit 0→10v with the fastest rising speed being 300ms
Current input	2 channels closed loop（0-1A），2 channels PWM（0-1A）
Input I	24 channels wet contact (NPN), Short circuit protection
Output O	24 channela high power transistor with direct fuel valve, drive capability 4.5A (full load test)
Output O	9channels other 24V low power output：motor, lubrication, etc.
Communication interface	RS232、RS485、CAN
Working voltage	Service voltage: DC 24V
Environment	Working temperature: -10℃～50℃; storage temperature: -25℃～55℃; relative humidity: 15%～85%
Recommended type	Middle and small vertical injection molding machines
Remarks	Parameters of the product may be changed due to technical updateor improvement without prior notice. All ordered products and parameters are subject to the physical product.
