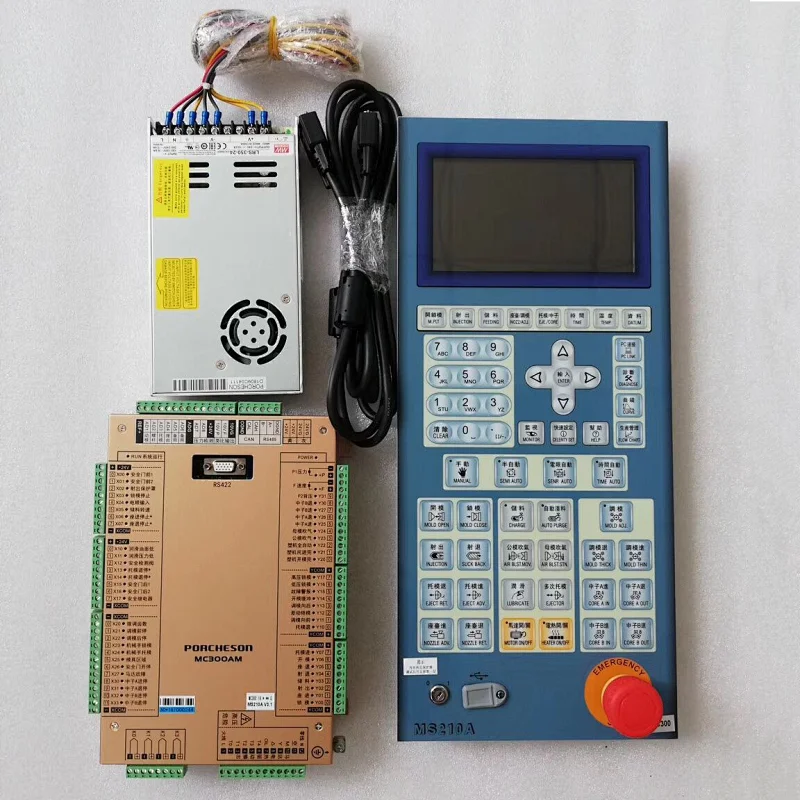

PORCHESON MC300AM MS210A control system
MC300AM MS210A
Quantity:
Features:
·Adopt ARM processor, low failure rate of system problem
·High integration, multi-function, high cost performance
·Simple operation and easy maintenance
·Multi-layer protection, safe and reliable,
·Quick response to customer on-site needs
·Support customer's secondary development and protect customer's core technology
| Project | Specifications |
| Brand | Porcheson |
| Host model | MC300AM |
| Programming software | PsMagic V3.28 (support user’s secondary development, language: ladder diagram +C language) |
| Performance | CPU: ARM; 32nd CPU; program scanning cycle: 1.2ms |
| Analog input | Position transducer: 0～2.5V, 6 channels single transducer/3 channels dual transducer, precision: 12bit, Sampling period: 100KSPS |
| Pressure detection: 2 channels 0～10V | |
| Temperature control | 4segments, self-learning PID control, display precision: 0.1℃, sensor type: K (default),J. |
| Voltage output | 2 channels 16bit 0→10v with the fastest rising speed being 300ms |
| Current input | 2 channels closed loop（0-1A），2 channels PWM（0-1A） |
| Input I | 28 channels wet contact (NPN)，2 channels differential scrambler（2channels standard: AB）, Short circuit protection |
| Output O | 25 channela high power transistor with direct fuel valve, drive capability 4.5A (full load test) |
| 9channels Wet Contact (relay) output：motor, lubrication, etc. | |
| Communication interface | RS232、RS485、CAN |
| Working voltage | Service voltage: DC 24V |
| Environment | Working temperature: -10℃～50℃; storage temperature: -25℃～55℃; relative humidity: 15%～85% |
| Recommended type | Middle and small vertical injection molding machines |
| Remarks | Parameters of the product may be changed due to technical update or improvement without prior notice. All ordered products and parameters are subject to the physical product. |
