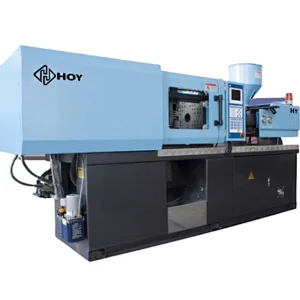

HY80(80T) Small injection molding machine
HY80
Quantity:
| DESCROPTION | UNIT | MODEL: HY80 | |
| A | B | ||
| INJECTION UNIT | |||
| Screw Diameter | mm | 34 | 36 |
Screw L:D ratio | L/D | 22.2 | 21 |
| Injection Pressure | MPa | 205 | 183 |
| Shot Volume (Theoretical) | cm3 | 125.2 | 140.4 |
| Shot Weight (PS) | g | 112 | 126 |
| Injection Rate | g/s | 75 | 83 |
| Max. Screw Speed | r/min | 205 | |
| CLAMPING UNIT | |||
| Clamp Force | kn | 800 | |
| Space Between Tie Bars (W*H) | mm | 370X370 | |
| Opening Stroke | mm | 335 | |
| Max. Mold Height | mm | 360 | |
| Min. Mold Height | mm | 150 | |
| Ejector Stroke | mm | 100 | |
| Ejector Force | kn | 31 | |
| OTHERS | |||
| Max. pump Pressure | MPa | 16 | |
| Pump Motor Power | kw | 11 | |
| Heater Power | kw | 6.6 | |
| Machine Dimension (LxWxH) | m*m*m | 4X1.2X1.7 | |
| Machine Weight | Ton | 3 | |
