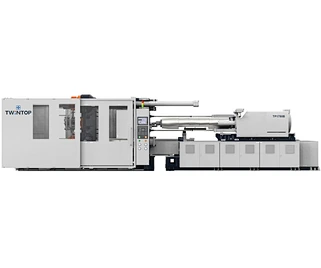

Два плиты машины TP-1750B

DESCROPTION

UNIT

MODEL: TP-1750B

A

B

C

INJECTION UNIT

Screw Diameter

mm

130

140

150

Injection Pressure

kg/cm²

1738

1498

1305

Shot Volume (Theoretical)

cm³

9954

11545

13253

Shot Weight (PS)

g

8959

10390

11928

oz

316

367

421

Injection Rate

cm³/s

1219

1414

1623

Plasticizing Capacity

kg/hr

518

666

815

Injection Speed

mm/s

99

Screw Speed

rpm

100

CLAMPING UNIT

Clamp Force

kn

17500

Space Between Tie Bars (W*H)

mm

1600X1400

Mold Platen Size (W*H)

mm

2300X2100

Max. Mold Height

mm

1500

Min. Mold Height

mm

700

Max. Daylight

mm

3200

Mold Locating Ring Diameter

mm

150

Ejector Stroke

mm

350

Ejector Force

kn

200

OTHERS

Number of Temperature Control Zone

zone

7

Motor Power

kw

41x1+57x2

Heater Power

kw

75

System Pressure

kg/cm²

170

Oil Tank Capacity

l

2000

Machine Dimension (LxWxH)

m*m*m

12X3.7X3.15

Machine Weight

Ton

80
