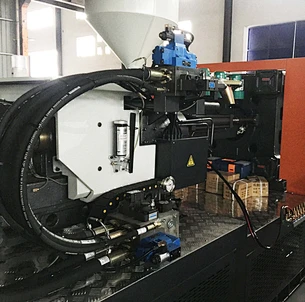

آلة صب حقن خاصة PVC
AX/UPVC178 (178T)
كمية:
| DESCROPTION | UNIT | MODEL: AX/ＵＰＶＣ-178 | |
| A | B | ||
| INJECTION UNIT | |||
| Screw Diameter | mm | 42 | 45 |
| Screw L:D ratio | L/D | 23.5 | 22 |
| Shot Size (TheoreticalAX) | cm3 | 308 | 353 |
| Injection Weight (PS) | g | 280 | 321 |
| Injection Rate | g/s | 140 | 160 |
| Injection Pressure | MPa | 203 | 177 |
| Max. Screw Speed | rpm | 0-200 | |
| CLAMPING UNIT | |||
| Clamp Tonnage | kn | 1780 | |
| Tonnage Stroke | mm | 435 | |
| Space Between Tie Bars (W*H) | mm | 470X470 | |
| Max. Mold Height | mm | 520 | |
| Min. Mold Height | mm | 180 | |
| Ejector Stroke | mm | 135 | |
| Ejector Tonnage | kn | 50 | |
| OTHERS | |||
| Max. pump Pressure | MPa | 16 | |
| Pump Motor Power | kw | 18.2 | |
| Heater Power | kw | 10.35 | |
| Machine Dimension (LxWxH) | m*m*m | 5.04X1.43X2.21 | |
| Machine Weight | Ton | 5.2 | |
| Oil Tank Capacity | L | 300 | |
