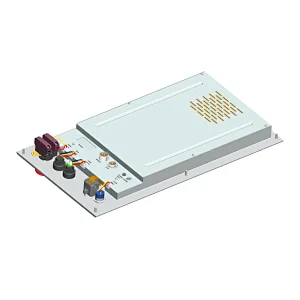

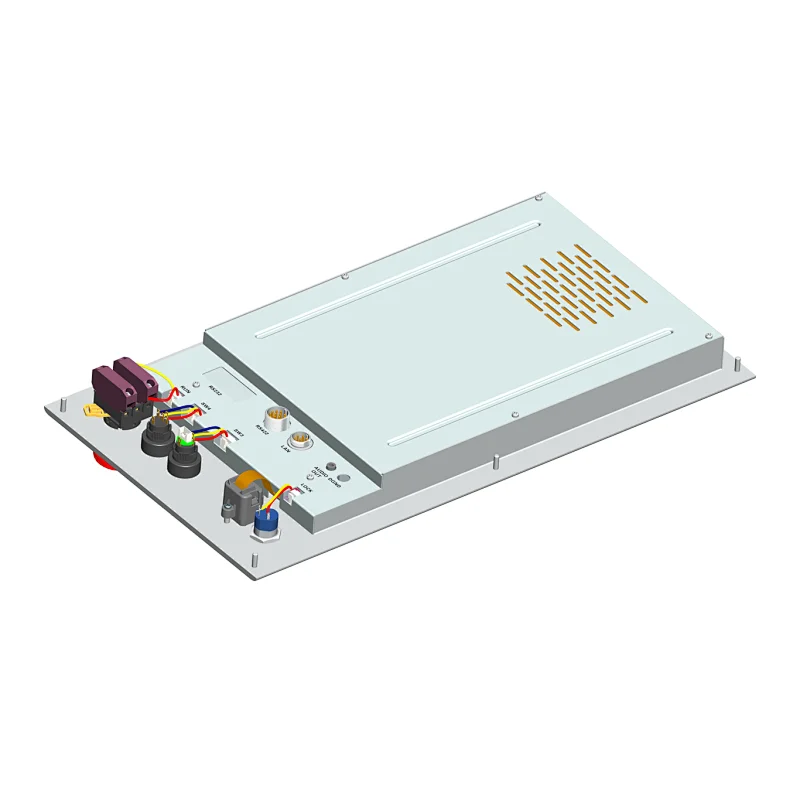

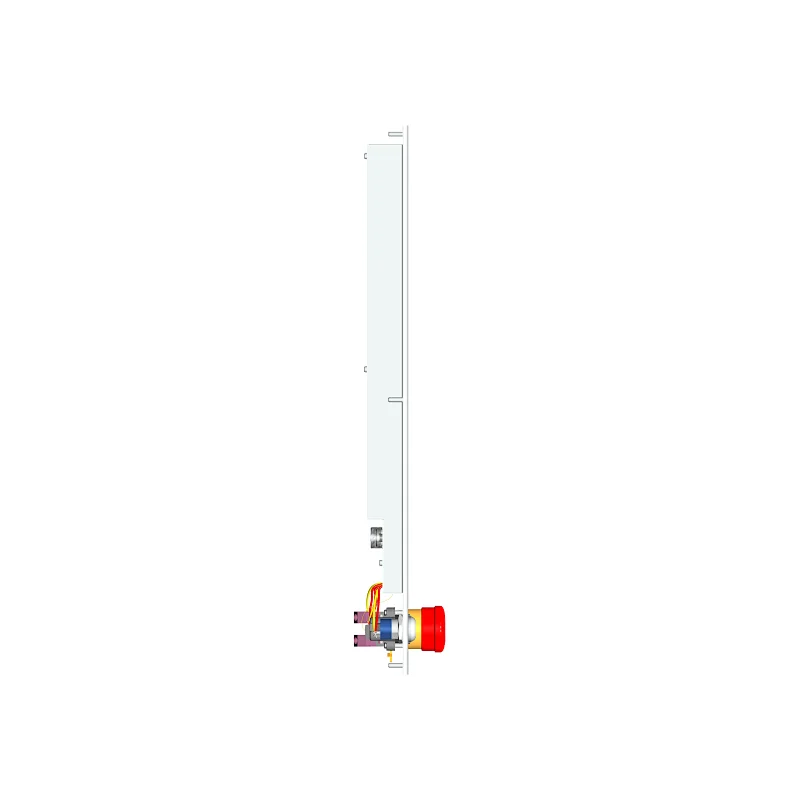

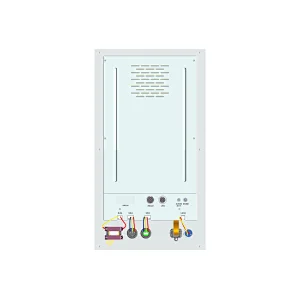

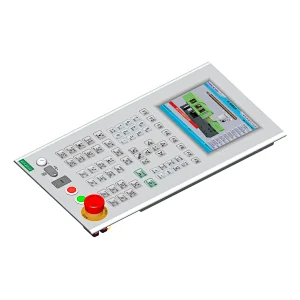

MK2020 PORCHESON Control Panel
MK2020 PORCHESON Control Panel
MK2020 PORCHESON Control Panel
MK2020 PORCHESON Control Panel
MK2020 PORCHESON Control Panel
MK2020 PORCHESON Control Panel

MK2020 PORCHESON Control Panel

Model NO.: MK2020
Features:

·super mass effect, high definition display, strong processing capacity

·Functional integration,Easy operation

·Graphical production process, visualized production data on PC

·Ten optional languages

·1 password multi-user, multiple management models

·Ethernet connector for necworking requirements

·User software redevelopment supported to protect clients' core technology
Project Specifications
Brand Porcheson
Panel model MK2020
Programming software OPWIN V6.16 configuration software support user’s secondary development
System CPU:  A8  Memory: 2G
Operating display Display screen:8 inch  1024x768 industrial screen,Touch function: support; button: touch button, with a service life of 200 thousand times
interface Communication: RS422 RS232, Ethernet(100M); storage:USB V2.0 、micro SD card
Other Data lock, emergency button, NFC function, voice alarm
Working voltage Service voltage: DC24V
Environment Working temperature: -10℃~50℃; storage temperature: -25℃~55℃; relative humidity: 15%~85%
Recommended type Middle and small vertical injection molding machines(ElectricOil and Electric)
note Parameters of the product may be changed due to technical update or improvement without prior notice. All ordered products and parameters are subject to the physical product.
