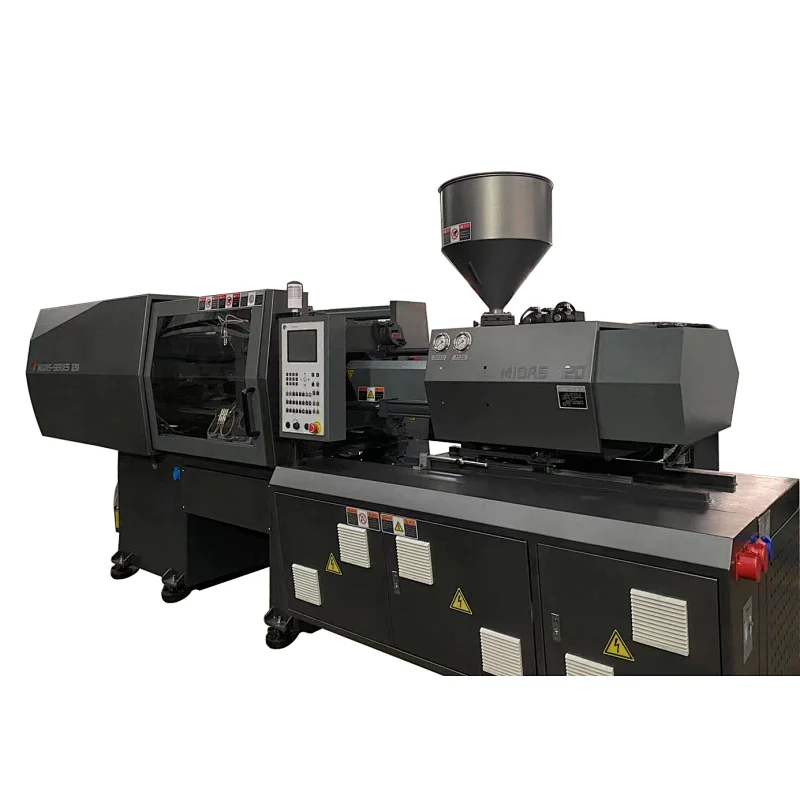

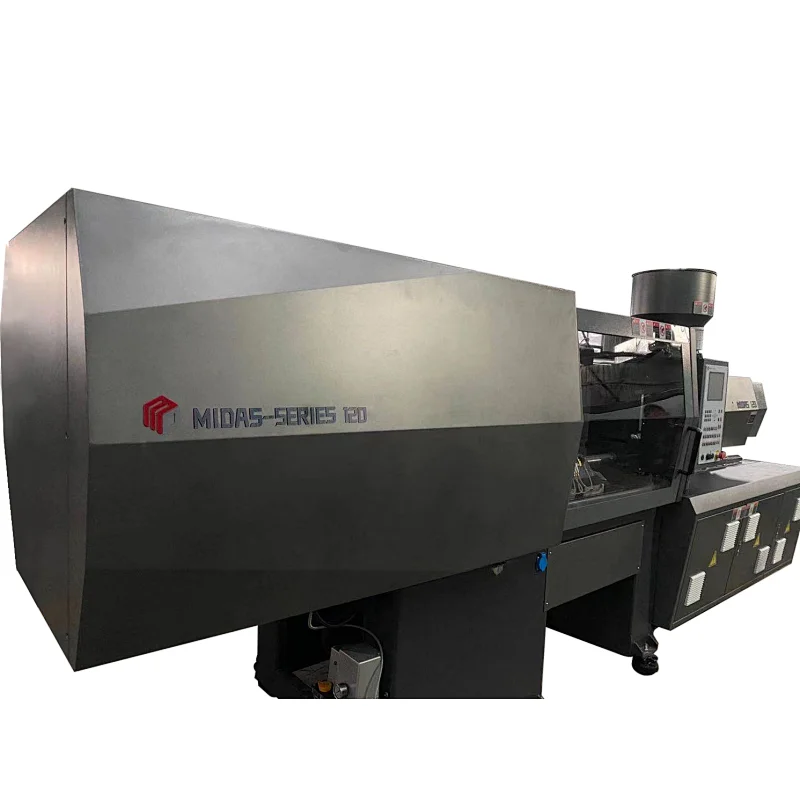

Model NO.
MIDAS-M220(220T)
Quantity:
ItemsUnitM220/820
Injection Unit
Screw diametermm455055
Screw L/D ratioL/D222220
Shot volume398491594
Shot weightg362447541
Injection pressure㎏/188152125
Injection rate/sec176217263
Plasticizing abilitykg/hr314052
Max. screw speedrpm220

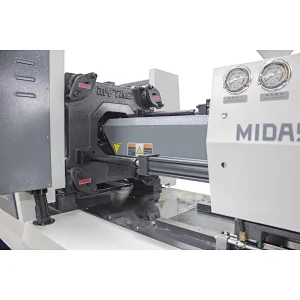

Clamping Unit
Clamping forcekn2200
Mold open strokemm460
Minimum mould thicknessmm215
Mxaimum mould thicknessmm560
Diameter of location ringmm125
Ejection forcekn50
Distance between tie barsmm520x470
Ejection strokemm150
Number of ejector rodspcs5
Others
Pump pressurempa16
Heating capacalitykw10
Motor powerkw22(63*2500)
Tank volumel220
Machine dimensiongsm5.1X1.3X2.0
Machine weightt6.2
