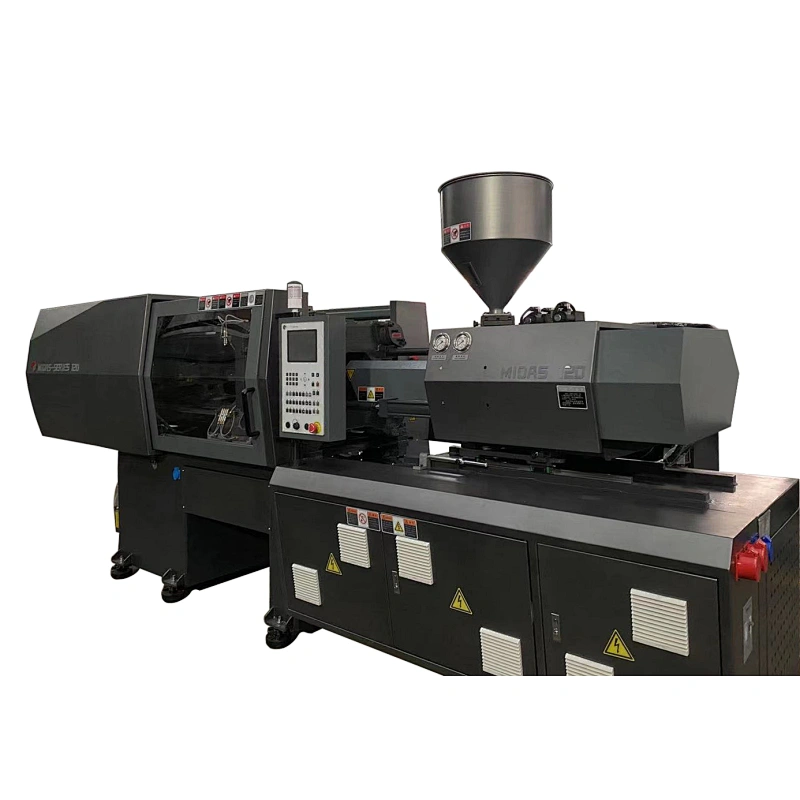

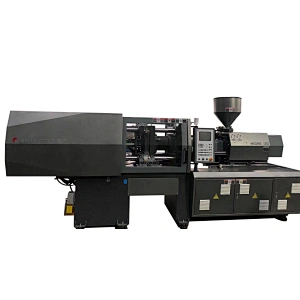

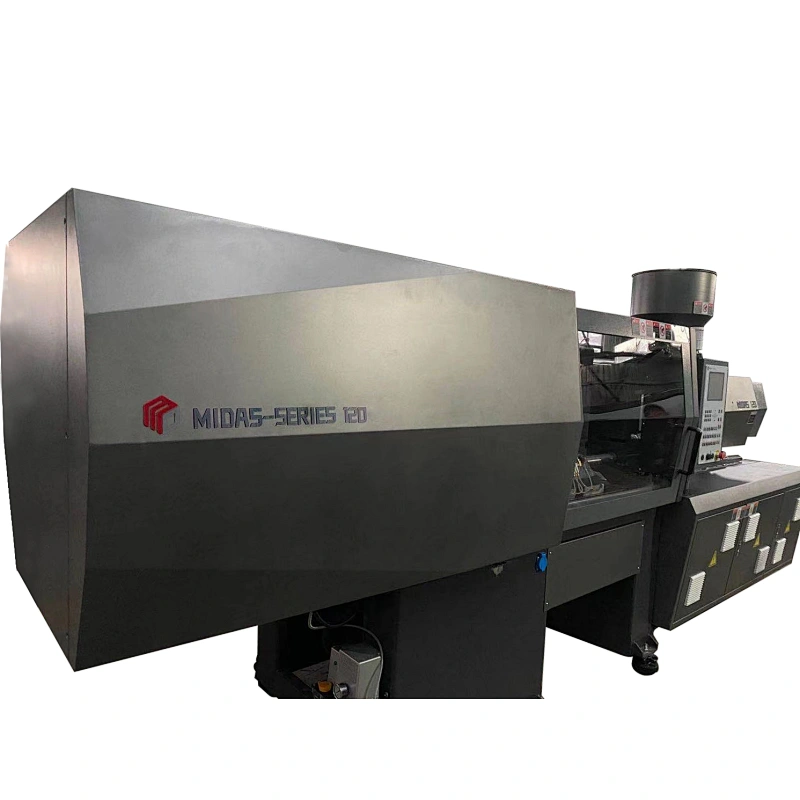

Model NO.:
MIDAS-M100(100T)
Quantity:
ItemsUnitM100/290
Injection Unit
Screw diametermm323640
Screw L/D ratioL/D222220
Shot volume145183226
Shot weightg132187206
Injection pressure㎏/203160130
Injection rate/sec85107132
Plasticizing abilitykg/hr131925
Max. screw speedrpm260
Clamping Unit
Clamping forcekn1000
Mold open strokemm340
Minimum mould thicknessmm150
Mxaimum mould thicknessmm395
Diameter of location ringmm 80
Ejection forcekn40
Distance between tie barsmm370X320
Ejection strokemm100
Number of ejector rodspcs5
Others
Pump pressurempa16
Heating capacalitykw5.8
Motor powerkw12(32*2500
Tank volumel130
Machine dimensiongsm4.1X1.1X1.6
Machine weightt3.2
