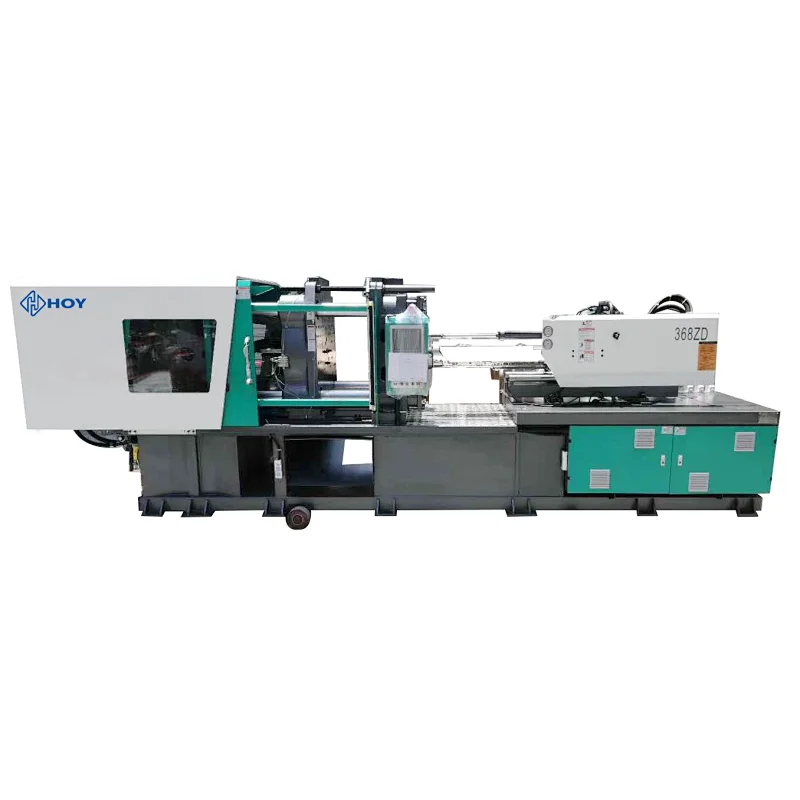

368ZD Nylon Cable Tie Injection Molding Machines
368ZD Nylon Cable Tie Injection Molding Machines

368ZD Nylon Cable Tie Injection Molding Machines

Model NO.: 368ZD

DESCROPTION

UNIT

MODEL: 368ZD

INJECTION UNIT

Screw Diameter

mm

58

Injection Pressure

kg/cm2

1311

Shot Volume (Theoretical)

cm3

674

Shot Weight (PS)

g

633

oz

22.3

Injection Rate

cm3/s

468

Plasticizing Capacity

kg/hr

265

Injection Stroke

mm

255

Screw Speed

rpm

307

CLAMPING UNIT

Clamp Force

kn

320

Distance Between Tie Bars (W*H)

mm

580X580

Mold Platen Size (W*H)

mm

920X1200

Min. Mold Capacity

mm

385X385

Mold Height

mm

210-460

Max. Daylight

mm

860

Clamp Stroke

mm

400

Ejector Stroke

mm

100

Ejector Force

kn

77

OTHERS

Ejector quantity

unit

4+1

Heater zone

unit

4+1

Heater Power

kw

14.8

Total Power

kw

51.8

Machine Dimension (LxWxH)

m*m*m

5.9X1.5X1.9

Machine Weight

Ton

11
