Model NO.:
MIDAS-M600(600T)
Delivery:
FOB
Quantity:
ItemsUnitM600/5060

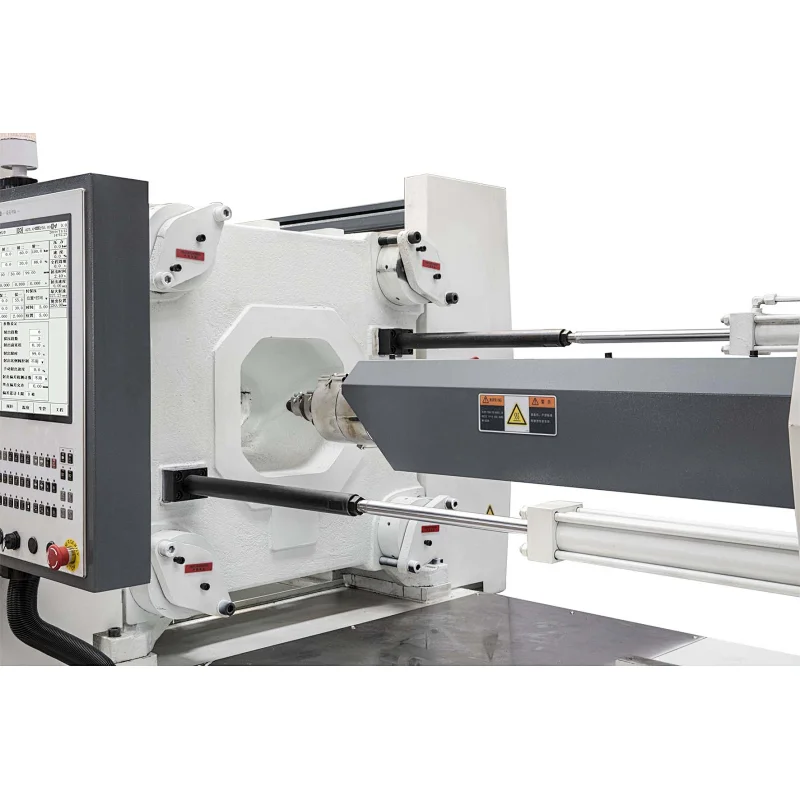

Injection Unit
Screw diametermm8590100
Screw L/D ratioL/D222219.8
Shot volume255428633534
Shot weightg232426053216
Injection pressure㎏/198177143
Injection rate/sec519582719
Plasticizing abilitykg/hr8396128
Max. screw speedrpm145

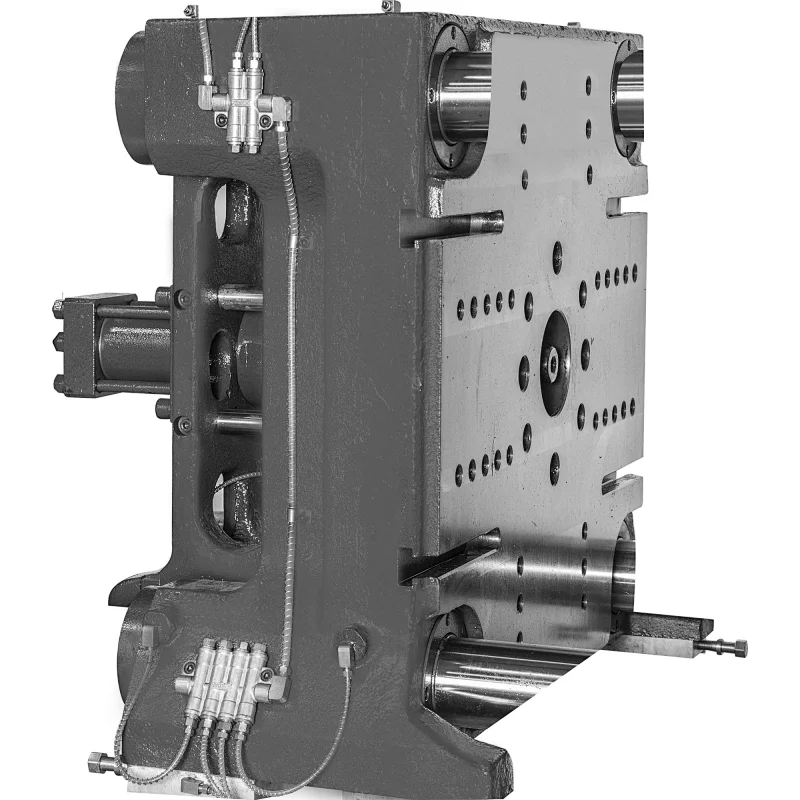

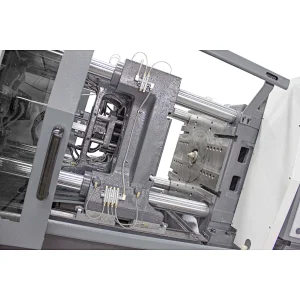

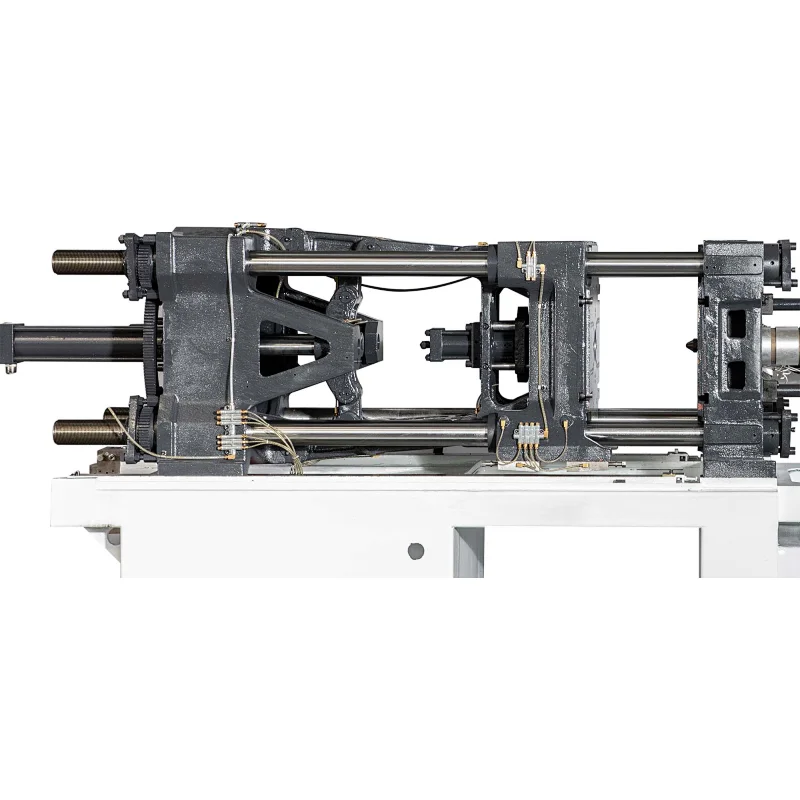

Clamping Unit
Clamping forcekn6000
Mold open strokemm880
Minimum mould thicknessmm400
Mxaimum mould thicknessmm885
Diameter of location ringmm160
Ejection forcemm160
Distance between tie barskn870x820
Ejection strokemm250
Number of ejector rodspcs17
Others
Pump pressurempa16
Heating Capacalitykw40
Motor powerkw55(200*2500
Tank volumel800
Machine dimensiongsm9.3X2.1X2.6
Machine weightt24

Send Message

*
*
*
*
*
*
*
